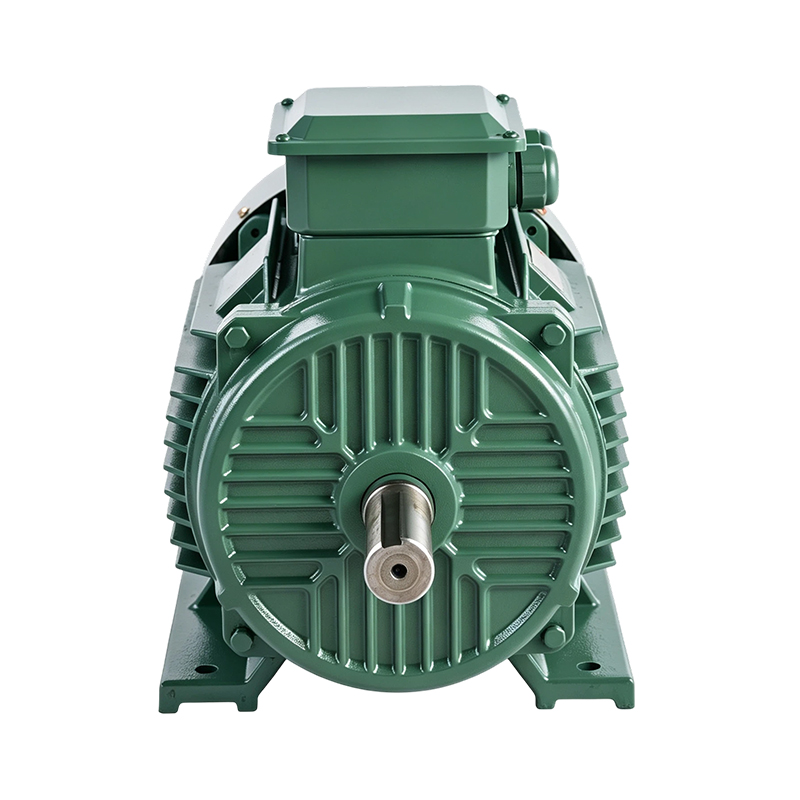

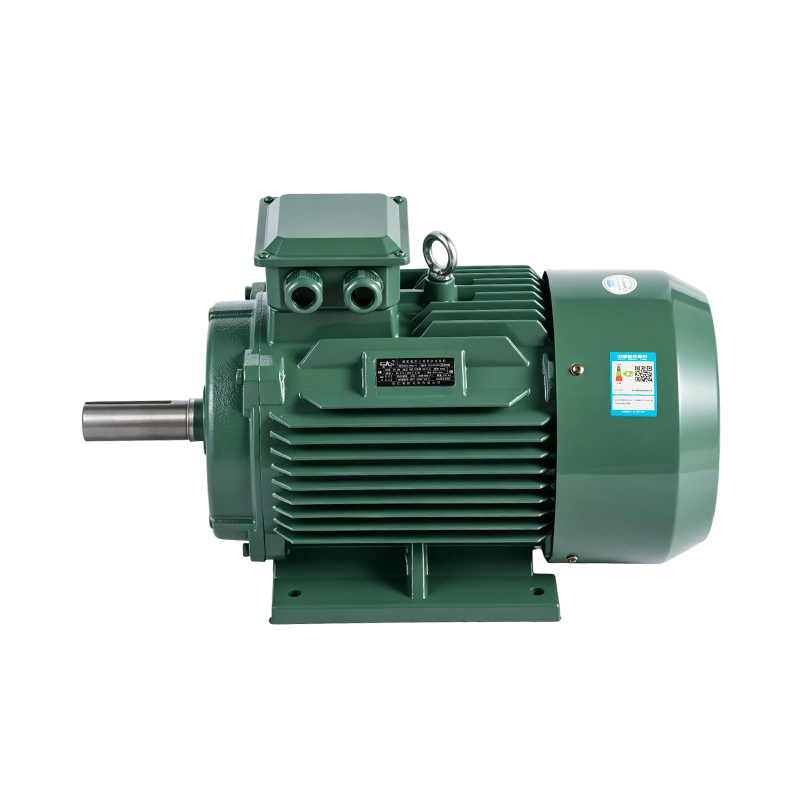

Name: YE4/IE4 General-Purpose Energy-Saving Induction Motor (4-pole)
Rating: 5 (99 reviews)

Product Details
FAQ

◆What This Motor Solves

One of the biggest concerns for factories during equipment selection is ending up with an overly specialized spec that makes spare parts hard to source. 1500 RPM happens to be the standard speed for the vast majority of general-purpose industrial equipment worldwide — from pumps to air compressors, from conveyor belts to standard machine tools — meaning it can typically be matched directly without recalculating transmission ratios. With power output ranging from 0.55kW to 375kW, this model covers everything from small auxiliary equipment on the shop floor to main drive motors on large production lines, significantly simplifying both procurement and spare parts management.

◆Performance

Efficiency meets the international IE4 standard, with a one-piece cast, high-strength iron housing, Class F insulation, IP55 protection rating, and support for S1 continuous duty. Compared to high-speed models, operating at 1500 RPM places less mechanical stress on bearings and windings, resulting in lower failure rates and longer maintenance intervals over time — a reassuring choice for factory customers who want equipment that runs reliably without constant monitoring.

◆Applications

Its strong versatility means this model is compatible with nearly any type of equipment — pumps, air compressors, conveying machinery, and general-purpose machine tools are all common pairings. For customers consolidating motor procurement and looking to cover multiple types of equipment across a facility with a single model, this is a practical choice for standardized management and cost control.

Type	Output		Full Load				N.m	Tst/TN	IST/IN	Tmax/TN	Noise dB(A)
Type	(kW)	(HP)	Current(A)	Speed(r/min)	Eff.(%)	P.F.(Cos)	N.m	Tst/TN	IST/IN	Tmax/TN	Noise dB(A)
YE4-80M1-4	0.55	0.75	1.4	1440	83.9	0.74	3.65	2.4	6.6	2.3	56
YE4-80M2-4	0.75	1	1.8	1440	85.7	0.74	4.97	2.3	8.5	2.3	56
YE4-90S-4	1.1	1.5	2.6	1445	87.2	0.75	7.27	2.3	8.5	2.3	59
YE4-90L-4	1.5	2	3.4	1445	88.2	0.76	9.91	2.3	9.0	2.3	59
YE4-100L1-4	2.2	3	4.7	1450	89.5	0.79	14.5	2.3	9.0	2.3	64
YE4-100L2-4	3	4	6.3	1450	90.4	0.80	19.8	2.3	9.5	2.3	64
YE4-112M-4	4	5.5	8.3	1460	91.1	0.80	26.2	2.3	9.5	2.3	65
YE4-132S-4	5.5	7.5	11.4	1475	91.9	0.80	35.6	2.0	9.5	2.3	71
YE4-132M-4	7.5	10	15.2	1470	92.6	0.81	48.7	2.0	9.5	2.3	71
YE4-160M-4	11	15	21.6	1470	93.3	0.83	71.5	2.0	9.5	2.3	73
YE4-160L-4	15	20	28.9	1470	93.9	0.84	97.4	2.0	9.5	2.3	73
YE4-180M-4	18.5	25	35.1	1475	94.2	0.85	120	2.0	9.5	2.3	76
YE4-180L-4	22	30	41.6	1475	94.5	0.85	142	2.0	9.5	2.3	76
YE4-200L-4	30	40	56.5	1485	94.9	0.85	193	2.0	9.0	2.3	76
YE4-225S-4	37	50	69.5	1490	95.2	0.85	237	2.0	9.0	2.3	78
YE4-225M-4	45	60	84.3	1485	95.4	0.85	289	2.0	9.0	2.3	78
YE4-250M-4	55	75	102	1485	95.7	0.86	354	2.0	9.0	2.3	79
YE4-280S-4	75	100	136	1490	96.0	0.87	481	2.0	8.5	2.3	80
YE4-280M-4	90	125	162	1490	96.1	0.88	577	2.0	8.5	2.3	80
YE4-315S-4	110	150	195	1490	96.3	0.89	705	1.8	8.5	2.2	88
YE4-315M-4	132	180	234	1490	96.4	0.89	846	1.8	8.5	2.2	88
YE4-315L1-4	160	220	280	1490	96.6	0.90	1026	1.8	8.5	2.2	88
YE4-315L-4	185	250	323	1490	96.7	0.90	1186	1.8	8.5	2.2	88
YE4-315L2-4	200	270	349	1490	96.7	0.90	1282	1.8	8.5	2.2	88
YE4-355M1-4	220	292	384	1490	96.7	0.90	1410	1.8	8.5	2.2	92
YE4-355M-4	250	340	436	1495	96.7	0.90	1597	1.8	8.5	2.2	92
YE4-355L1-4	280	375	489	1495	96.7	0.90	1789	1.8	8.5	2.2	92
YE4-355L-4	315	430	550	1490	96.7	0.90	2019	1.8	8.5	2.2	92
YE4-3551-4	355	475	634	1490	96.7	0.88	2275	0.9	8.5	1.8	92
YE4-3552-4	375	503	670	1490	96.7	0.88	2404	0.9	8.5	1.8	92
